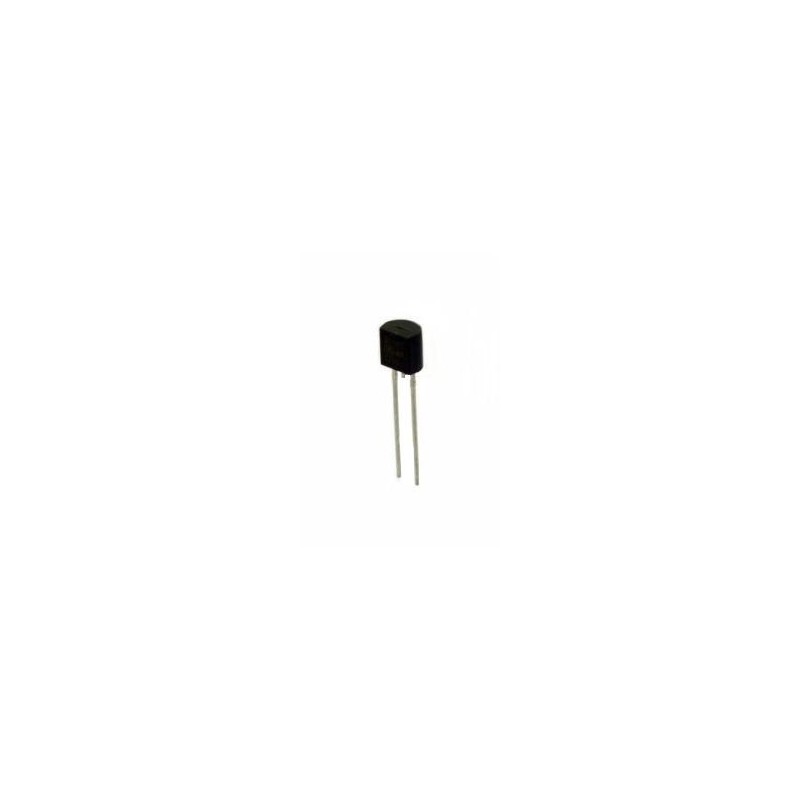

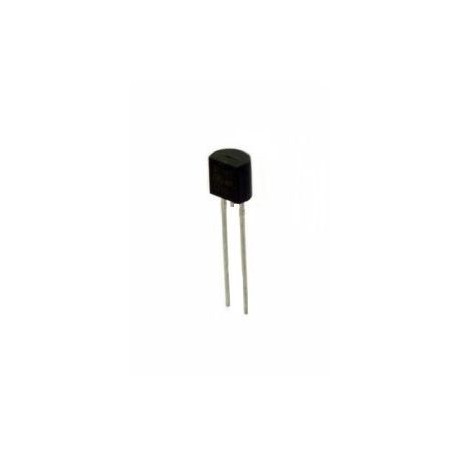

K1300E70 DIODO 1A max 120-138V TO-92

Scheda Tecnica

Articolo: K1300E70

Descrizione: Diodo The sidac is a silicon bilateral voltage triggered switch with
greater power-handling capabilities than standard diacs. Upon
application of a voltage exceeding the sidac breakover voltage
point, the sidac switches on through a negative resistance region
to a low on-state voltage. Conduction continues until the current
is interrupted or drops below the minimum holding current of the
device.

Breakover Voltage VBO: 120V to 138V
Current IBO Max: 10uA
Current IRDM Max: 5uA
Current IH Max:60-150A

Amps I T(RMS):1A

Contenitore: TO-92-3

Marking: K1300E70

Articolo in sostituzione:

Applications: High-voltage lamp ignitors
Natural gas ignitors
Gas oil ignitors
High-voltage power supplies
Xenon ignitors
Overvoltage protector
Pulse generators
Fluorescent lighting ignitors
HID lighting ignitors

Nota informativa: I dati presenti in questa scheda sono solo indicativi.
Per informazioni piu precise consultare i dati del produttore.
TheseScheda Tecnica are indicative only, for more precise information look in the data producer.

RoHS:
