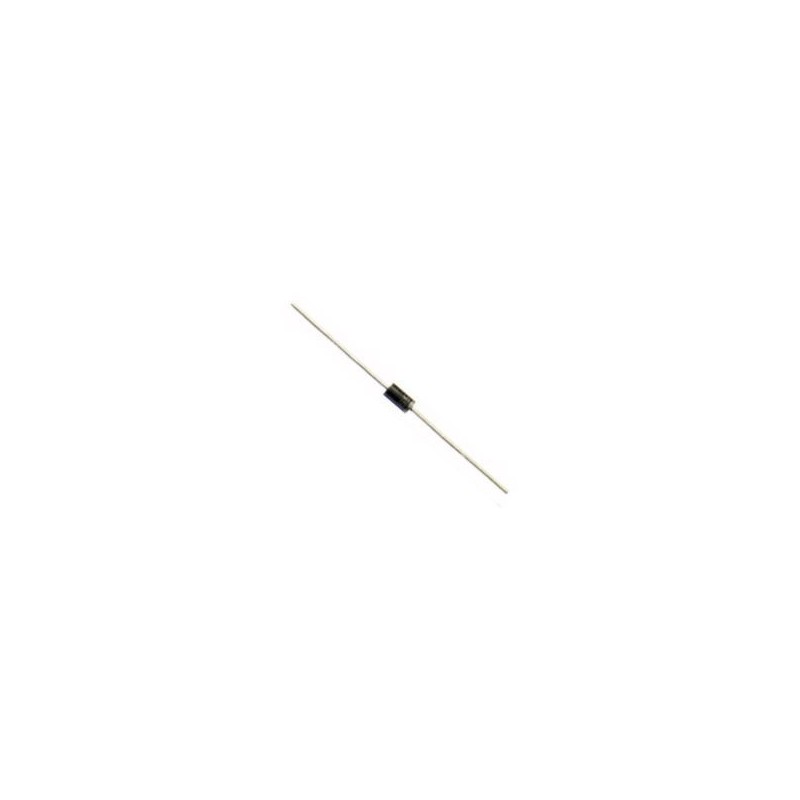

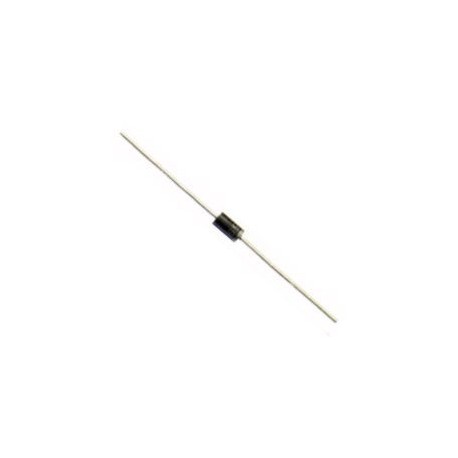

95 SQ 015 DIODO SCHOTTKY 15V 9A

Scheda Tecnica

Articolo: 95SQ015

Descrizione: Diodo SCHOTTKY RECTIFIER

Corrente: 9A

Tensione: 15V

Contenitore: DO 204AR

Marking: 95SQ015

Articolo in sostituzione:

Applications: Typical applications are in parallel switching power supplies, converters, reverse battery protection, and redundant power subsystems.
125°C TJ operation (VR < 5V)
Optimized for OR-ing applications
Ultra low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

Nota informativa: I dati presenti in questa scheda sono solo indicativi.

Per informazioni piu precise consultare i dati del produttore.

These Scheda Tecnica are indicative only, for more precise information look in the data producer.

RoHS:
