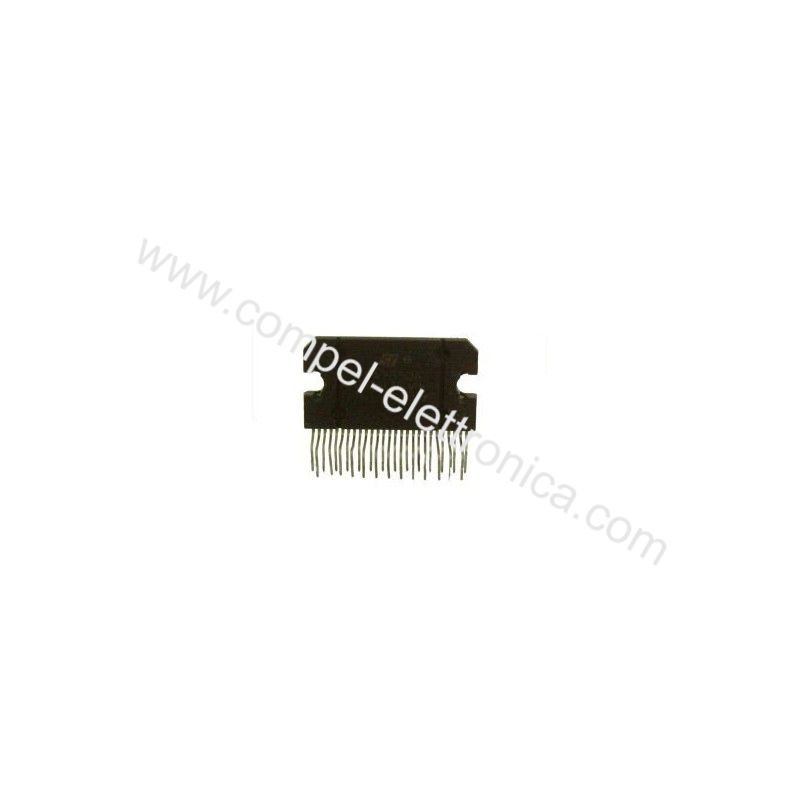

TDA 7850 V6 IC 4x50W AMPLIFIER

Scheda Tecnica

Articolo: TDA7850

Category:

Descrizione: 4 x 50W MOSFET
Quad bridge power amplifier plus HSD
Features
¦ Superior output power capability:
4 x 50W/4O Max.
4 x 30W/4O @ 14.4V, 1KHz, 10%
4 x 80W/2O Max.
4 x 55W/2O @ 14.4V, 1KHz, 10%
¦ MOSFET Output power stage
¦ Excellent 2O driving capability
¦ HI-FI class distortion
¦ Low output noise
¦ ST-BY Function
¦ Mute function
¦ Automute at min. supply voltage detection
¦ Low external component count:
– Internally fixed gain (26dB)
– No external compensation
– No bootstrap capacitors
¦ On board 0.35A high side driver

Produttore: ST

Annotazioni:

Nota informativa: I dati presenti in questa scheda sono solo indicativi.
Per informazioni piu precise consultare i dati del produttore.
TheseScheda Tecnica are indicative only, for more precise information look in the data producer.
