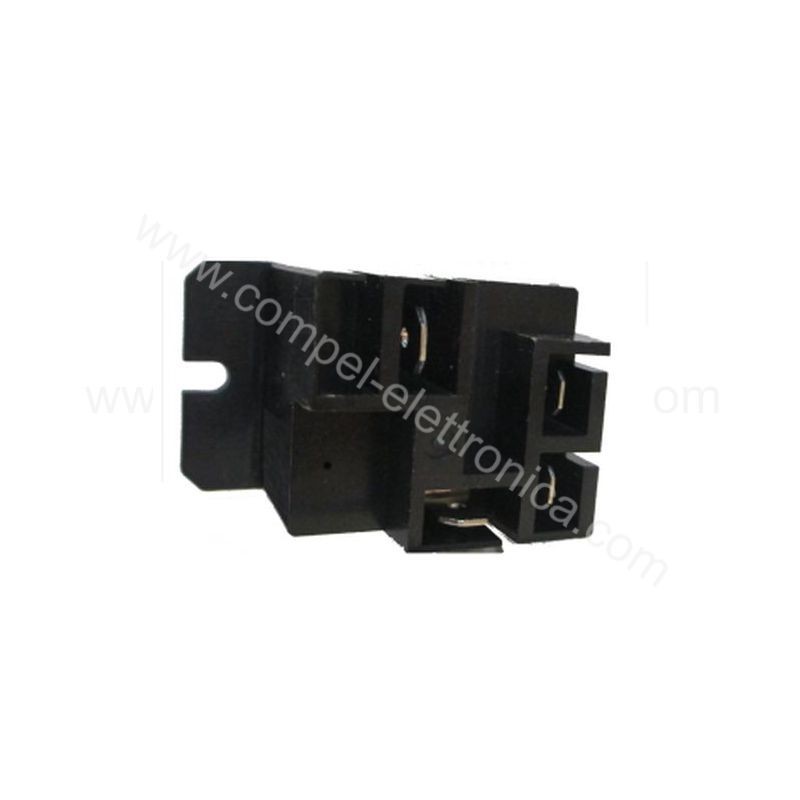

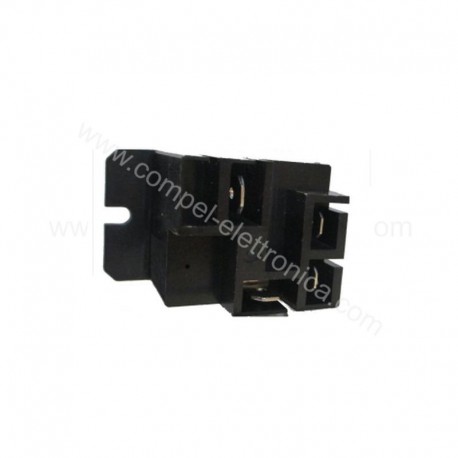

RELÈ T9AP1D52-48-01 1 SCAMBIO 48V 30A

Scheda Tecnica

Articolo: T9AP1D52-48-01 T9AP1D52 48 01

Category: RELAYS

Descrizione: RELAY PANNEL 30A 48V

Coil Corrente: 21mA

Coil Tensione: 48Vdc

Contact Form: SPST-NO (1 Form A)

Contact Rating (Current): 30A

Switching Tensione: 277Vac Max

Turn On Voltage (Max): 36Vdc

Turn Off Voltage (Min): 4,8Vdc

Operate Tempo: 15ms

Release Tempo: 15ms

Coil Power: 1W

Coil Resistance: 2,3 kOhms

Operating Temperature: 55°C ~ 85°C

Articolo in sostituzione:

Produttore: POTTER
